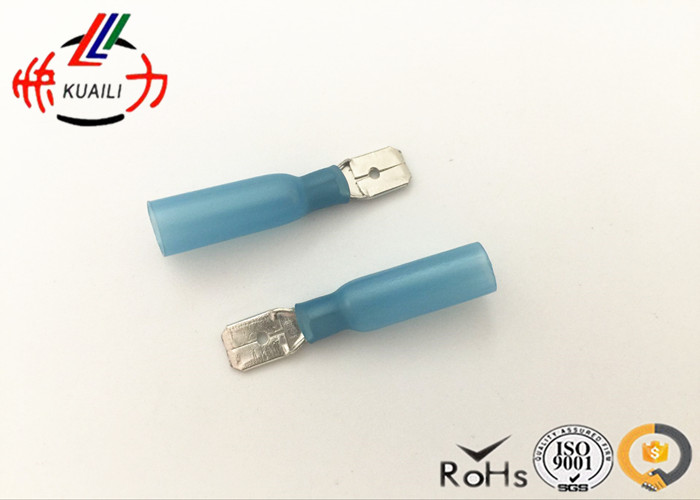

Heat Shrink Insulated Wire Connectors Terminals Male and Female

Brand Name : KUAILI

Model Number : heat shrink terminal

Certification : ROSH

Place of Origin : China

MOQ : 1000PCS

Price : consult

Payment Terms : D/A, D/P, T/T, L/C

Supply Ability : 500000 per week

Delivery Time : 5~30days According to the order quantity

Packaging Details : 100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.

Model : male and female Heat Shrink Tube

material : pure copper,thin copper,brass

Color : Red Blue Yellow

Wire Range : 0.5-1.5mm2 1.5-2.5mm2 4-6mm2

Surface : Tin Palting

Wire range : 22-16AWG 16-14AWG 12-10AWG

Contact Now

Heat Shrink Insulated Male and Female Terminals and connectors



Applications
HSRT and HSY made by polyolefin, with adhesive lining for protecting splices from water and corrosion. Providing strain relief and against vibration in rugged environment, which completely insulates and protects terminations and other electrical components. In the end of the splice is high pure copper sheet, with excellent conductivity property. HSRT and HSYT offers long-term performance, easy installation, and a low installed cost, which is more reliable than conventional crimp terminals.



Characteristics
Shrink ratio 3:1
Hot-melt adhesive provides excellent waterproof property.
Excellent stretch and mechanical damage resistance.
High tensile strength
Good conductivity property.
High elasticity keeps steady performance
Operating Temperature Range
Operating temperature: -55°C~125°C
Minimum shrink temperature: 80°C
Minimum fully recovery temperature: 130°C



Test item Characteristics Test condition
Unaged Tensile strength Min. 16MPa Room temp.
Elongation Min. 200%
Aged Tensile strength Min. 11.5MPa 158℃/7 days
Elongation Min. 100%
Voltage withstand and breakdown Voltage(Unaged) Withstand 2.5 KV for 1minute and breakdown Room temp.
Voltage withstand and breakdown Voltage(Aged) Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage 158℃/7 days
Copper corrosion No corrosion of bare copper 158℃/7 days
Copper stability No sign of degradation Min.Elongation 100% 158℃/7 days
Cold bend No crack -30℃/4 hrs
Maximum secaht modulus(2%) 250 MPa -
Volume resistivity Min.1014Ω-cm -
Heat shock No crack 250℃/4 hrs

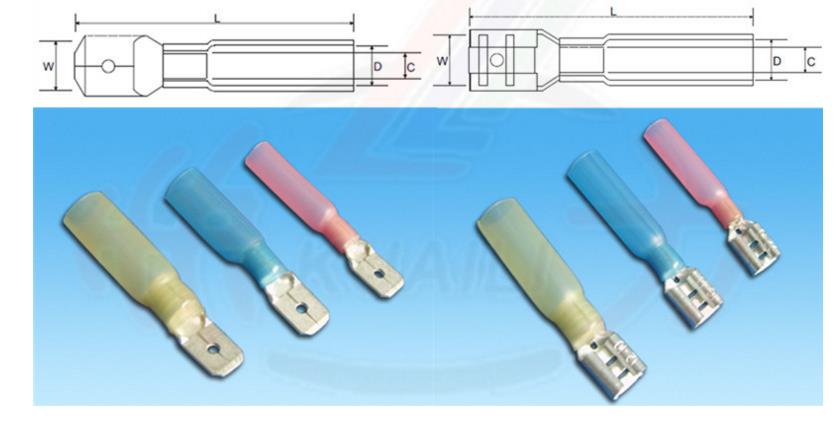

Heat Shrink Insulated Wire Connectors Terminals Male and Female

Item No. Wire range
mm2/Awg		 Tab Size Dimension(mm/inch) Insulation
Color		 Q’TY
Bag
C W L D
MDD 1.25-110(5) 0.5-1.5mm2
22-16AWG		 2.8 x 0.5 1.7 2.75 30 4.8 Red 1000
MDD 1.25-110(8) 2.8 x 0.8 2.75 30 1000
MDD 1.25-187(5) 4.8 x 0.5 4.75 32 1000
MDD 1.25-187(8) 4.8 x 0.8 4.75 32 1000
MDD 1.25-250 6.4 x 0.8 6.35 32.5 1000
MDD 2-187(5) 1.5-2.5mm2
16-14AWG		 4.8 x 0.5 2.3 4.75 32 5.8 Blue 1000
MDD 2-187(8) 4.8 x 0.8 4.75 32 1000
MDD 2-250 6.4 x 0.8 6.35 32.5 1000
MDD 5.5-187 4-6mm2
12-10AWG		 6.4x 0.8 3.4 6.35 32.5 6.8 Yellow 1000
MDD 5.5-250 6.4x 0.8 3.4 6.35 32.5 1000





Item No. Wire range
mm2/Awg		 Tab Size Dimension(mm/inch) Insulation Color Q’TY
Bag
C W L D
FDD 1.25-110(5) 0.5-1.5mm2
22-16AWG		 2.8 x 0.5 1.7 3.2 31.5 4.8 Red 1000
FDD 1.25-110(8) 2.8 x 0.8 3.2 31.5 1000
FDD 1.25-187(5) 4.8 x 0.5 5 32 1000
FDD 1.25-187(8) 4.8 x 0.8 5 32 1000
FDD 1.25-250 6.4 x 0.8 6.6 32.5 1000
FDD 2-110(5) 1.5-2.5mm2
16-14AWG		 2.8 x 0.5 2.3 3.2 31 5.8 Blue 1000
FDD 2-110(8) 2.8 x0.8 3.2 31 1000
FDD 2-187(5) 4.8 x 0.5 5 32 1000
FDD 2-187(8) 4.8 x 0.8 5 32 1000
FDD 2-250 6.4 x 0.8 6.6 32.5 1000
FDD 5.5-187 4-6mm2
12-10AWG		 4.8 x 0.5 3.4 5 29 6.8 Yellow 1000
FDD 5.5-250 6.4 x 0.8 6.6 32.5 1000



Heat Shrink Insulated Wire Connectors Terminals Male and FemaleHeat Shrink Insulated Wire Connectors Terminals Male and FemaleHeat Shrink Insulated Wire Connectors Terminals Male and Female
